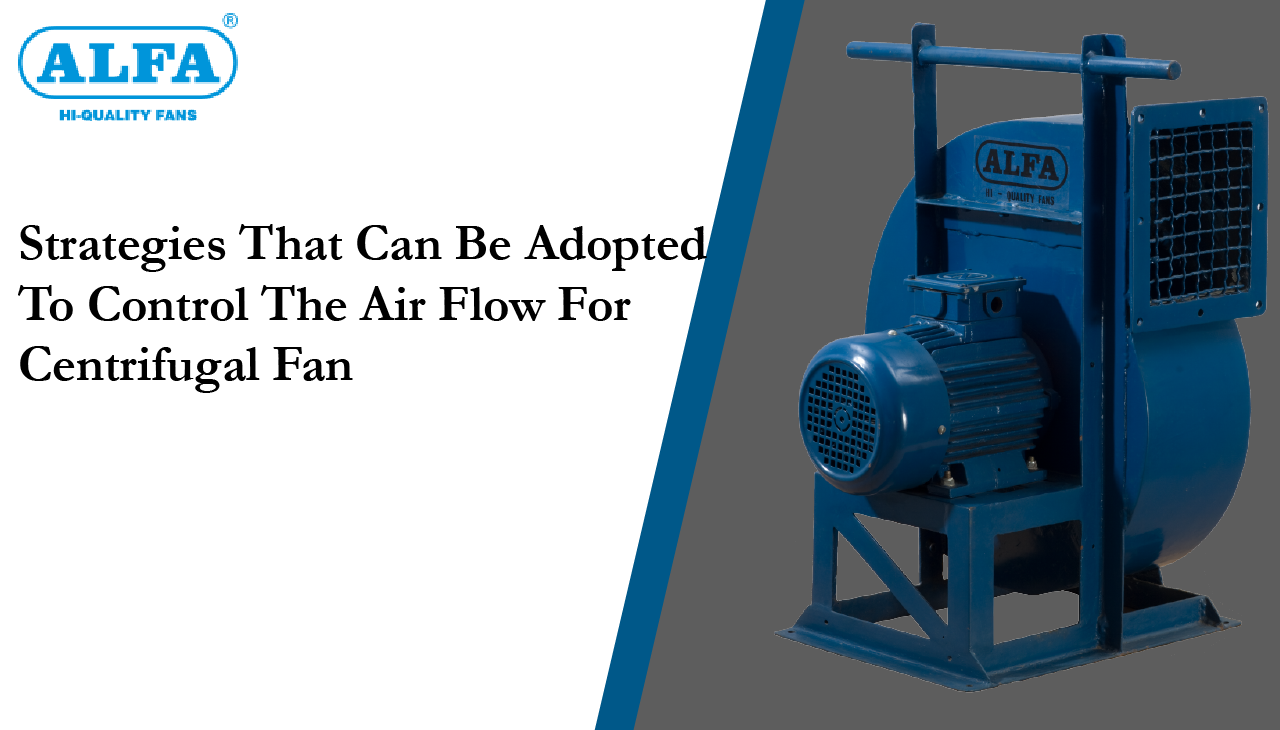

Strategies That Can Be Adopted To Control The Air Flow For Centrifugal Fan

When the system of an

industrial fan

is planned and introduced, the

fan

works at a steady speed. There might be events when a speed change is alluring, i.e., while adding another run of duct that requires an increment in wind stream (volume) through the fan. There are numerous reasons you would need to control the airflow in your industrial fan application. How you do it depends on your fan bend, regardless of whether you need to decrease volume, keep up with pressure, change the bend dependent on recurrence in hertz to add proficiency, secure your framework against flood, or address different issues on the double.There are likewise examples when the industrial fan is larger than average and stream decreases are required. There are various essential wind current control methodologies for

centrifugal fans

in modern settings, including different damper and drive arrangements. Some of them are explained below:

Outlet Damper:
The most well-known wind current control methodology for radiating /

cooling fans

is the power source damper. Sitting right on the power source of the fan, this is a gone against edge style outlet damper. The stream needs to be kept in control by steadily shutting the edges to diminish the wind current volume while raising static pressing factor. This permits you to get to a more proficient point on the fan bend and cut down on the amp draw from the engine. One note of alert: in the event that you close the damper to an extreme, you can hit the flood risk zone, which you unquestionably need to keep away from to secure your fan.

Pulley Change:
At the point when a change in the fan volume is required on a lasting basis, and the current fan can handle the adjustment of limit, the volume change can be accomplished with a speed change. The least difficult approach to change the speed is with a pulley change. For this, the fan should be driven by an engine through a V-belt framework. The fan speed can be expanded or on the other hand diminished with an adjustment of the drive pulley or the determined pulley or sometimes, the two pulleys.

Delta Box Damper:
The bay box damper uses an equal sharp edge plan methodology for radiating fan wind stream control. It goes on the delta of your fan and starts the prespin of the air to make it move in a similar way as the edges are turning inside the fan. For this situation, shutting the damper gradually moves the bend rather than simply moving along the bend. So as you close it, you'll decrease both volume and pressing factor. This additionally can hit the flood risk zone, so you should be mindful so as not to close it to an extreme.

Variable Frequency Drive (VFD):
Rise is the essential danger with outlet dampers and gulf box dampers. There is a choice that takes out that danger: the variable gulf vane (VIV) damper. That is the reason the VIV is great (far) for wind current control in radiating fans. The vanes mount with a projectile nose configuration, folding right over the channel. They shut toward the wind current inside the fan to assist with the prespin. The variable channel vane damper changes the bend, diminishing volume while keeping a comparative pressing factor most extreme.

Variable Inlet Vane (VIV) Damper:
Rise is the essential danger with outlet dampers and gulf box dampers. There is a choice that takes out that danger: the variable gulf vane (VIV) damper. That is the reason the VIV is great (far) for wind current control in radiating fans. The vanes mount with a projectile nose configuration, folding right over the channel. They shut toward the wind current inside the fan to assist with the prespin. The variable channel vane damper changes the bend, diminishing volume while keeping a comparative pressing factor most extreme.

Variable Inlet Vane Damper + Variable Frequency Drive:
The most noteworthy conceivable control with minimal danger of fan flood is to join the VFD with the VIV. This gives the proficiency of the VFD in riding the framework system bend while permitting you to go up on speed without expanding stream. By correlation, in the event that you simply have a VFD, pressing factor and volume will go up or down together. On the bend, the impact is to change the framework opposition bend to meet the changed pressing factor bend for the fullest strategy for stream control.

Series and Parallel Operation:
Parallel operation of fans is another valuable type of limit control. Fans in parallel can be furthermore furnished with dampers, variable channel vanes, variable-pitch edges, or speed controls to give a serious level of adaptability and unwavering quality. Joining fans in series or parallel can accomplish the ideal wind current without incredibly expanding the framework bundle size or fan measurement. Parallel activity is characterized as having at least two fans blowing together side by side. The exhibition of two fans in equal will bring about multiplying the volume stream, however just at free conveyance. At the point when a framework bend is overlaid on the equal execution bends, the higher the framework obstruction, the less expansion in stream results with equal fan activity. Subsequently, this kind of utilization ought to possibly be utilized when the fans can work in a low obstruction practically in a free conveyance condition. Series activity can be characterized as utilizing numerous fans in a push-pull game plan. By arranging two fans in series, the static pressing factor ability at a given wind current can be expanded, yet once more, not to twofold at each stream point. In series activity, the best outcomes are accomplished in frameworks with high protections. In both series and equal activity, especially with various industrial fans , certain spaces of the joined execution bend will be insecure and ought to be kept away from. This shakiness is unusual and is an element of the fan and engine development and the working point. Alfa Fans is a
